Disc Shaft Coupling

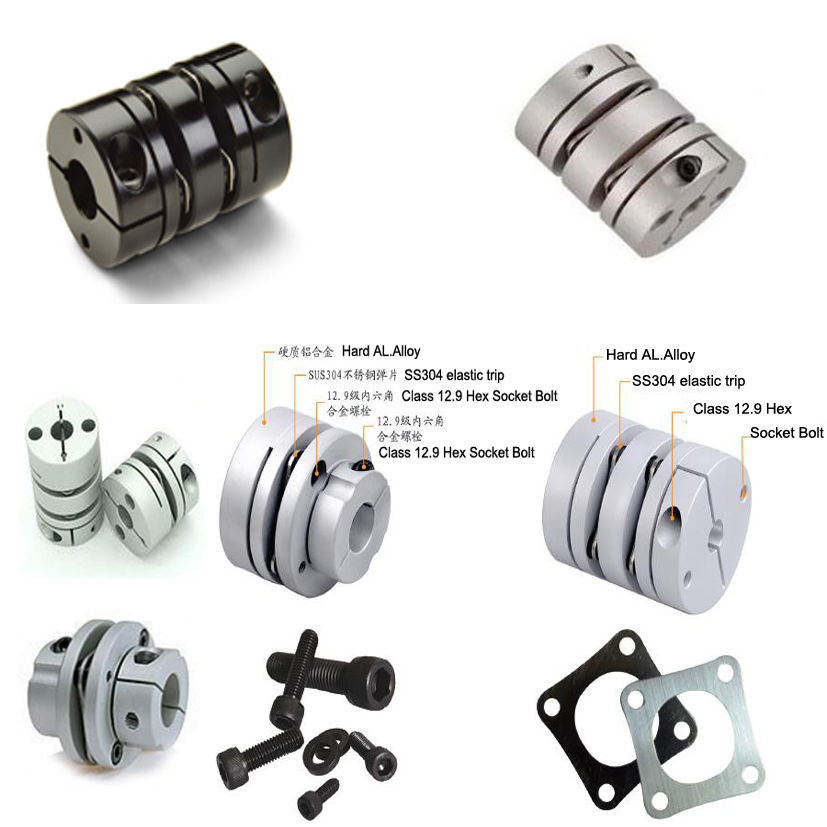

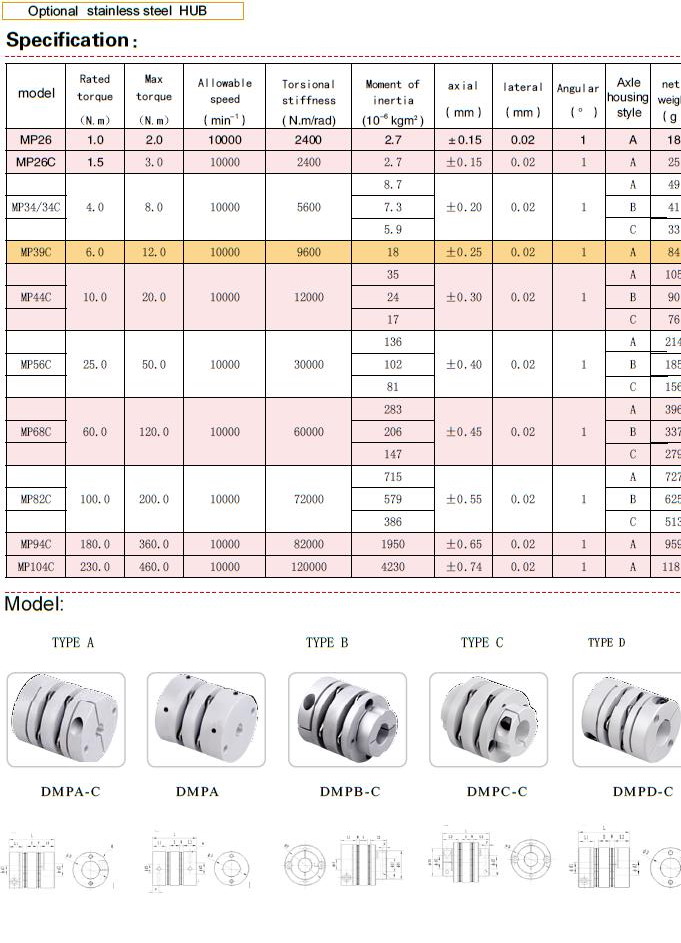

Disc Coupling has Setscrew and Clamp types. Each type has Single disc and Double disc structures.

The Clamp type's code with C, and there is the groove/split on the end.

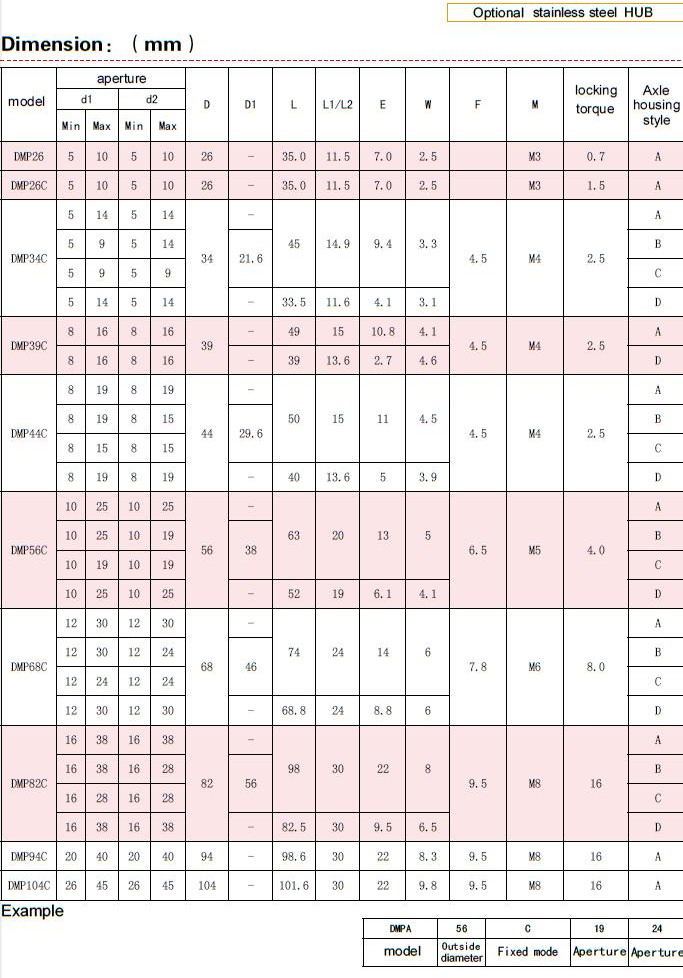

Single Disc Size: MP26C~MP104C, MP26~MP104 (OD from 26~104mm)

Double Disc Size: DMP26C~DMP104C, DMP26~DMP104 (OD from 26~104mm)

Material: Alu. Alloy for metal parts. We can also make the SS.304 couplings.

High quality with better price
Shorter delivery date: 5~10days
High precision and long life

Economical and practical using

Quiet and smoothly operation
Easy installation and maintenance
Available to machines with high torque and intermittent operation

Advantages and Features:

1. We focus on mass production with high quality and more competitive price.
2. Wide Product types and professional manufacturing.
3. Couplings Material: Cast Iron, Steel, Alluminum Alloy, SS., Plastic, etc.
4. ISO9001-2008, strict quality control.
5. Can produce standard and non-standard products.
6. Finish: Anodizing, Zinc plated, Blackened oxide, Natural color, anti-rust oiled,etc.
7. Beautiful surface and profile, stable working.
8. Easy to install and disassemble

More details or any inquiry, please kindly send email to: allen@nb-ruike.com, we will do our best to help you!
